Technical Specifications

Specifications
5075HSG-D
5075HSG-WS
Chamber Dimensions Ø x L (mm) 500 x 750 500 x 750
Chamber Volume (Liters)
160
160L
No. of Trays
2
2
Tray Dimensions W x H x D (mm)
Small: 310 x 21 x 698
Large: 310 x 21 x 698
Small: 310 x 21 x 698
Large: 310 x 21 x 698

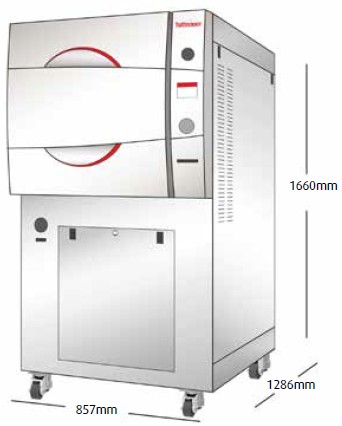

Overall Dimensions W x H x D (mm)
857 x 1660 x 1286
857 x 1660 x 1286
Autoclave Weight (kg)
366 kg
366 kg



Electrical Specifications

Model
Voltage (Volts) / Frequency (Hz)
Power (kW)
5075HSG – D
3 ph, 208/230/400/440/480 Volts
1ph, 230 Volts (requires switch box - optional)
50/60 Hz
18 kW
5075HSG – WS
3 ph, 208/230/400/440/480 Volts
1ph, 230 Volts (requires switch box - optional)
50/60 Hz
9 kW
