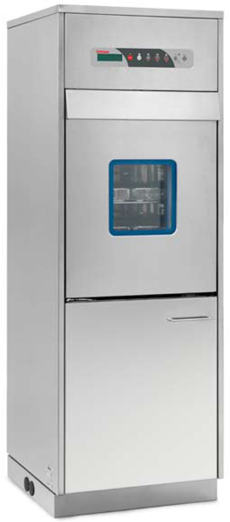

Tiva 610 Washer Disinfector

10 DIN Baskets : 250 liter chamber

  • Single or Double Door
  • Hot air drying
  • 40 Programs
  • 2 Chemical dosing pumps
  • Built-in steam condenser



Tiva 610

10 DIN Baskets : 250 liter chamber

The Tiva 610 is an economic washer featuring low energy and water consumption.  Several double door Tiva 610 washer-disinfectors used together are an ideal low-cost solution for medical centers that needeffective washing of large quantities of medical items.  Loading and unloading of instruments is carried out using manual trolleys, optionally connected to a conveyer system.

Features

Performance

• Washing temperature fully adjustable up to 93°C
• Temperature controlled by means of two independent PT1000 probes
• Fresh water intake between each phase of the cycle promotes hygiene and better cleaning
• Connections to cold, warm and DI water are standard
• A triple water filtration system captures residues so they are not re-circulated
• The washing and drying injection system enables direct injection into hollow objects ensuring optimal thermal disinfection and drying
• Filtered forced air drying, with adjustable time and temperature settings, helps to ensure complete drying inside and outside of all items in the washing chamber
• Heavy duty self-cleaning water circulation pump ensures rapid flow rate and effective spray pressure
• Steam condenser prevents steam from entering the washing area



Medical Clinics & OR - Washer Disinfectors - Small Washer Disinfectors - Tiva 610 - Tuttnauer

Design And Convenience

• LCD display with 20 standard cycle programs and 20 additional adjustable cycle programs
• RS-232 printer connection is provided for documenting the washing phases
• Two chemical dosing pumps with the ability to adjust detergent consumption for each cycle (level control).
• Glass viewing window
• Self-cleaning chamber with rounded edges
• Capacity to store up to four 5 liter containers of detergent
• Doors are positioned at a convenient height for loading and unloading using a trolley


Optional

• 3rd and 4th chemical dosing pump
• HEPA H14 air filter
• Integrated printer



High Quality Cleaning And Disinfection

Thermal Disinfection

Thermal disinfection takes place at 93°C with a temperature holding time in compliance with EN ISO 15883. Both temperature and time can be modified to meet the specific requirements of the customer.


Mechanical Cleaning Action

Mechanical action is a vital component of the cleaning process which uses heavy duty wash pumps to ensure high flow rate and effective spray pressure for better and faster cleaning results.


Designed To Stay Clean

The washing chamber is designed with smooth edges and corners to ensure a clean chamber surface and prevent dirt build-up.


Long Lasting And Safe

Water Quality

Built-in large capacity water softener for a continuous supply of softened water enhances cleaning effectiveness and prevents build-up of limescale.



Quality Components

Washing chamber, washing arms and filters are made of high quality corrosion proof AISI 316 stainless steel.  Double wall chamber construction and thorough insulation minimize heat loss and electricity consumption.


Standard Compliant

All Tuttnauer washer- disinfectors comply with 93/42/EEC and are manufactured in accordance with
EN ISO 15883-1 and 2.
