66120 Mid-Range cGMP Pharmaceutical Autoclave

  • cGMP Pharamceutical autoclave
  • 450 Liter chamber volume
  • PQ, FAT and SAT (IQ /OQ) optional
  • Built to conform to end-user-requirements (URS)
  • Steam sterilizing agent



Pharmaceutical Autoclaves Models

cGMP Pharmaceutical autoclave with fully automatic sliding doors designed to conform to end-user requirements (URS) using steam as the sterilizing agent, appropriate for pharma production and quality assurance processes. The 66120 autoclave chamber volume is 450 liters.

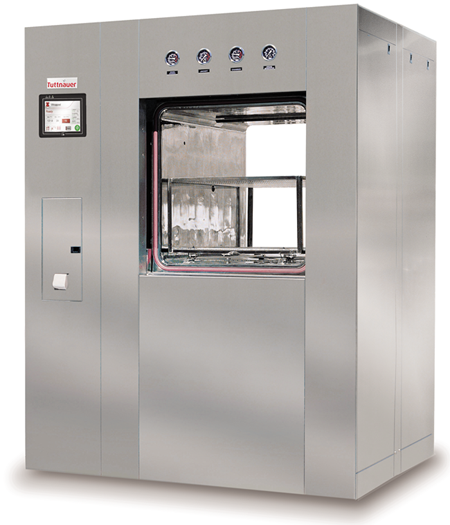

66120 Mid-Range cGMP Pharmaceutical Autoclave - Tuttnauer

Model
Chamber Dimensions
( Wx H x D) mm
Chamber Volume (Liter)
Door Options
5596
66120 610 x 610 x 1215 450 Vertical sliding - 1 or 2 doors



Autoclave

Features and Options

Pressure Vessel
AISI 316L stainless steel chamber
ASME Code Section VIII, Division 1
or PED 97/23 EEC
AISI 316L stainless steel jacket o
Polished Surface (Ra less than 0.4 μm) o
Insulation encased in stainless steel
Jacket covering 100% of the chamber wall for
uniform heat distribution.
Jacket cooling o

Bio-shield preperation o

AISI 304 or 316L stainless steel base frame o

Door(s)
Automatic sliding door(s)
Bi-directional door sequencing o

Piping & Components
Pharmaceutical grade sanitary piping and
components (primary)
o
Pharmaceutical grade sanitary piping and
components (primary & secondary)
o
PT100 temperature sensor in drain
Sanitary 0.2 μm air admission filter o
Chamber water level & alarm
Isolated pressure (membrane) gauges
o
Videoboroscoping report for clean piping o

Air detector o

Other
Clean steam generator o
Biohazard system for waste treatment o
Filter integrity testing connections o





Autoclave Installation and Configuration

  • Bi-Directional door sequencing controls on both sides of autoclave is standard on two door autoclaves
  • Mounting can be recessed between two walls, in a wall, or stand alone
  • Bio shield wall seal prevents airflow between different classified areas
