Tiva 610 LabWasher Disinfector

250 liter chamber

  • Basket volume 220 Liters
  • Single Door
  • Hot air drying
  • Three position sliding rails
  • Built-in water softener

Brochures

English Brochure

Quick Contact

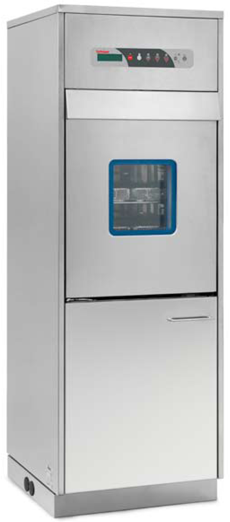

Tiva 610 Lab

250 Liter Chamber

The Tiva 610 Lab is designed with an extended chamber height. It features three washing/drying levels with telescopic sliding rails on four positions and has the capability of cleaning bottles of up to 50 liters.

Features

Performance

  • Washing and disinfection temperatures are fully adjustable up to 90ºC
  • Temperature controlled by means of two independent PT1000 probes
  • Fresh water intake between each phase of the cycle promotes hygiene and better cleaning
  • Connections to cold, warm and DI water are available, with a triple water filter system that captures residues so that they are not re-circulated, thus lengthening pump life
  • A heavy duty self-cleaning water circulation pump ensures rapid flow rate and effective spray pressure
  • Filtered forced air drying, with adjustable time and temperature settings, helps to ensure complete drying inside and outside of all the glassware and laboratory instruments
  • Built-in water softener enhances cleaning effectiveness and prevents limescale build-up

    • Design and Convenience

    • RS-232 printer connection for documenting washing phases
    • Telescopic sliding rails for safe and easy loading and unloading of glassware
    • Equipped with two chemical dosing pumps (two additional pumps optional) under microprocessor control, with the option of modifying the required detergent quantities of each cycle
    • Doors are positioned at a convenient height for loading and unloading using a trolley
    • Glass viewing window
    • Self-cleaning chamber with rounded edges
    • Steam condenser prevents steam from entering into the laboratory
    • Capacity to store up to four 5 liter containers of detergent

    Optional

    • 3rd and 4th chemical dosing pump
    • HEPA H14 air filter
    • Integrated printer

    Superior Glassware Disinfection

    The Laboratory Glassware range of Washer-Disinfectors provides superior cleaning and disinfection combined with innovative options to minimize cost and time. This comprehensive approach offers a flexible solution for safe and thorough processing of a wide range of equipment used in the laboratory for testing and analysis.


    High Quality Cleaning And Disinfection

    For reliable laboratory results re-used equipment must be thoroughly cleaned. Regular washing using Tiva Laboratory Washer-Disinfectors ensures that repeated use of equipment in the laboratory does not affect reliability.


    Thermal Disinfection

    Thermal disinfection takes place at 90°C with a temperature holding time in compliance with EN ISO 15883. Both temperature and time can be modified to meet the specific customer requirements.


    Mechanical Cleaning Action

    Heavy duty pumps ensure high flow rate of water and effective yet gentle water spray pressure for better and faster cleaning results.


    Designed To Stay Clean

    The washing chamber is designed with smooth edges and corners to ensure a clean chamber surface and to prevent dirt build-up.
