Tiva 600Washer Disinfector for Hospitals

8 DIN Baskets : 200 liter chamber

  • Single or Double Door
  • Hot air drying
  • 40 programs
  • 2 Chemical dosing pumps
  • Built-in steam condenser

Brochures

English Brochure

Quick Contact

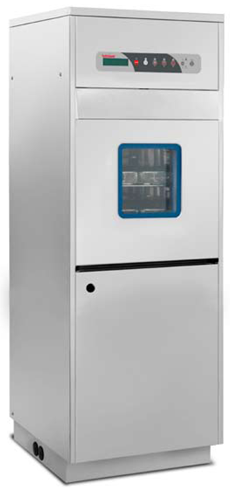

Tiva 600

8 DIN Baskets : 200 Liter Chamber

The Tiva 600 is ideal for medical centers, dental practices and clinics. It marks the evolution of a flexible system for washing, disinfecting and drying of medical and laboratory items. The Tiva 600 washer provides an excellent preparation for sterilization.

Features

Performance

• Washing temperature fully adjustable up to 93°C
• Temperature controlled by means of two independent PT1000 probes
• Fresh water intake between each phase of the cycle promotes hygiene and better cleaning
• Connections to cold, warm and DI water are standard
• A triple water filtration system captures residues so they are not re-circulated
• The washing and drying injection system enables direct injection into hollow objects ensuring optimal thermal disinfection and drying
• Filtered forced air drying, with adjustable time and temperature settings, helps to ensure complete drying inside and outside of all items in the washing chamber
• Heavy duty self-cleaning water circulation pump ensures rapid flow rate and effective spray pressure
• Steam condenser prevents steam from entering the washing area







Design And Convenience

• LCD display with 20 standard cycle programs and 20 additional adjustable cycle programs
• RS-232 printer connection is provided for documenting the washing phases
• Two chemical dosing pumps with the ability to adjust detergent consumption for each cycle (level control).
• Glass viewing window
• Self-cleaning chamber with rounded edges
• Capacity to store up to four 5 liter containers of detergent
• Doors are positioned at a convenient height for loading and unloading using a trolley



Optional

• 3rd and 4th chemical dosing pump
• HEPA H14 air filter
• Integrated printer



High Quality Cleaning And Disinfection

Thermal Disinfection

Thermal disinfection takes place at 93°C with a temperature holding time in compliance with EN ISO 15883. Both temperature and time can be modified to meet the specific requirements of the customer.


Mechanical Cleaning Action

Mechanical action is a vital component of the cleaning process which uses heavy duty wash pumps to ensure high flow rate and effective spray pressure for better and faster cleaning results.


Designed To Stay Clean

The washing chamber is designed with smooth edges and corners to ensure a clean chamber surface and prevent dirt build-up.


Long Lasting And Safe

Water Quality

Built-in large capacity water softener for a continuous supply of softened water enhances cleaning effectiveness and prevents build-up of limescale.


Quality Components

Washing chamber, washing arms and filters are made of high quality corrosion proof AISI 316 stainless steel.  Double wall chamber construction and thorough insulation minimize heat loss and electricity consumption.


Standard Compliant

All Tuttnauer washer- disinfectors comply with 93/42/EEC and are manufactured in accordance with
EN ISO 15883-1 and 2.
