ELV - D Line Vertical Autoclaves for Life Sciences

  • Biohazard and Waste sterilization
  • Instrument sterilization (wrapped or unwrapped)
  • Agar preparation
  • 175 to 700 Liter chamber volume
  • Liquid sterilization with various cooling options
  • Pipette and Glass sterilization

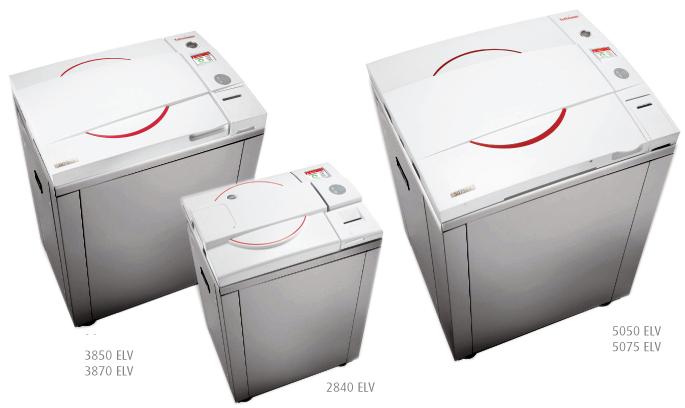

ELV - D Line models

Tuttnauer vertical laboratory autoclaves are top loading autoclaves available in chamber sizes between 31 to 160 liters.
ELV models have an advanced microprocessor control panel and chamber made of 316L or 316Ti stainless steel.
Internal printer is optional.

Tuttnauer laboratory autoclaves have been designed to provide high quality repeatable performance and accountability for a wide range of applications used in modern laboratories.


ELV - D Line	Vertical Autoclaves for Life Sciences - Vertical Autoclave - Laboratory - Tuttnauer


Vertical D-Line Models - Technical Data

D-Line
Model
Chamber DimensionsØxD (mm) Chamber Volume(Liter) External DimensionsWxHxD (mm)
2840 ELV 280 x 460 31 540 x 980 x 440
3840 ELV  380 x 400 52 730 x 1000 x 540
3850 ELV  380 x 500 65 730 x 1000 x 540
3870 ELV   380 x 690 85 730 x 1000 x 540
5050 ELV  500 x 500 110 870 x 860 x 770
5075 ELV  500 x 750 160 870 x 1090 x 770
* External dimensions may change when an optional internal steam generator is added
ELV - D Line Vertical Autoclaves for Life Sciences - Vertical Autoclaves - Laboratory & Research - Tuttnauer



Erlenmeyer Flasks (ml) Loading Capacity

Model 250  500 1000 2000 3000 5000
2840 ELV 2 x 5 2 x 3 1 1 1 1
3840 ELV 2 x 12 1 x 8 1 x 5 1 x 2 1 1
3850 ELV 2 x 12 2 x 8 1 x 5 1 x 2 1 1
3870 ELV 3 x 12 3 x 8 2 x 5 2 x 2 2 x 1 1
5050 ELV  2  x 21 2  x 14 2  x 8 1 x 5 1 x 4 1 x 2
5075 ELV 3 x 21 3 x 14 3 x 8 2 x 5 2 x 4 1 x 2


Schott-Duran Flasks (ml) Loading Capacity

Model 250  500 1000 2000 3000 5000
2840 ELV 2 x 8 2 x 5 1 x 3 1 - 1
3840 ELV 2 x 19 2 x 12 1 x 8 1 x 4 - 1
3850 ELV 2 x 19 2 x 12 1 x 8 1 x 4 - 1
3870 ELV 3 x 19 3 x 12 2 x 8 2 x 4 - 1
5050 ELV 2  x 32 2  x 21 2 x  15 1 x 8 - 1 x 4
5075 ELV 3 x 32 3 x 21 3 x 15 2 x 8 - 2 x 4





Safety

Your safety is an important factor.  Tuttnauer autoclaves provide safety features that ensure a trouble free work environment.


Door Safety

The laboratory autoclaves are designed with a number of independent mechanical and digital safety features.

  • A safety device prevents the operator from opening the door when the chamber is pressurized
  • Steam will not to enter the chamber when the door is open
  • A cycle cannot start if the door is open or not properly locked
  • he door cannot unlock until liquid temperature reaches the predetermined end temperature
  • The door cannot unlock until chamber pressure reaches room pressure

General Safety Features

  • Double Independent Monitoring: The combined electronic and mechanical monitoring ensures that the operator has two independent means to monitor pressure
  • Safety Valves: The chamber is equipped with safety valves – if the pressure exceeds the allowed limit the safety valves will discharge
  • Built-in Steam Generator Safety: A water level monitoring system maintains a constant water level and ensures safe operation of the heaters

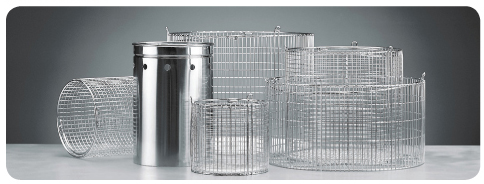

Baskets and Containers

Vertical stainless steel wire baskets and containers in different sizes for all autoclave models
